Impact Sample Hydraulic U-Notch V-Notch Making Machine+U V Notch Cutting Machine+Notch Broaching Machine

Payment Terms:	T/T,L/C
Place of Origin:	Shandong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: CSL-B

Production Capacity: 100 Sets / Month

Delivery Date: 7-15 DAYS AFTER ORDER

Power: Hydraulic

Means of Transport: Ocean

Packing: Export Wooden Box Package

Usage: Impact Testing Machine

Brand Name: TEST

Hydraulic Electronic Broaching Machine
Used to make V-notch and one U-notch for impact test specimen

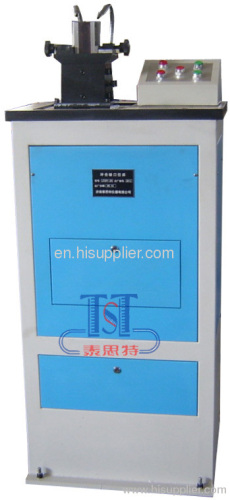

CSL-B Hydraulic U-Notch and V-Notch Making Machine

This machine adopts hydraulic drive double-broach structure, which has the advantage that it can process two specimen notches at the same time: one V-notch and one U-notch (Two V-notch or two U-notch are also ok, special orders can be met according to customers 'requirements). No matter to process V-notch or U-notch, it is not necessary to change the broach, and it only takes 8 seconds to finish one process. It is easy to operate, and the processed V-notch and U-notch conform to GB2106-80 "Charpy (V-notch) Impact Testing Method" and "Charpy (U-notch) Impact Testing Method", as well as ASTM E23, ISO148,ISO083 and so on.

With experience for many years, at present, hydraulic electric notch broaching machine is the only tool which can produce qualified specimen notches except optical curve broaching machine. Because of one time form processing principle, the identity of machining notch is very good.

U type and V broaches are all made with W18Cr4V material to assure its high rigidity, good wearable. Each broach can machine sample 20000 times. Each broach can process as many as 20,000 specimens, if it can be used correctly in the operation process. This machine is a necessary equipment in metallurgy, boiler pressure vessel, vehicle &. ship, construction machinery production and scientific research rationalize test room.

Main Technical Specifications:
i. Notch: V Type, U Type

ii. Dimension of standard specimen: 10 x 10 x 55mm

iii. Travel of the broach: 350mm

Broaching speed: 2.5m/min

Broach material: W18Cr4V

iv. Power supply: 380V, 50HZ, 0.37kW

v. Out dimension: 600×400×1400 mm

vi. Weight: 200kg
