Steel Bar + Steel Tube Bending and Rebending Test Machine+Bending Testing Machine+Bend and Rebend Test Machine

Payment Terms:	T/T,L/C
Place of Origin:	Shandong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: GW-40B/50B

Production Capacity: 100 Sets per Month

Delivery Date: 2 Weeks after Payment

Power: Electronic

Means of Transport: Ocean

Packing: Export Wooden Box

Usage: Bending Testing Machine

Brand Name: TEST

Used to do bend and rebend test on steel.
Range of bend steel bars diameter: 6-40mm

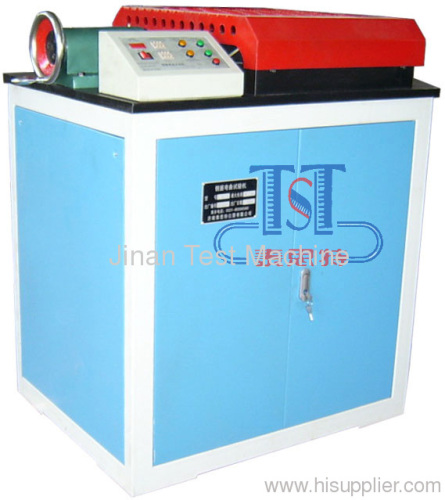

Steel Bar Bending and Rebending Testing Machine

Application & Features:

The steel bar bend testing machine can be used to do forward and backward bend test on plane. It is an important equipment to test the recurvating character of screw thread steel bar in steel factory and architectural company. It can be used to bend the steel bar on-site so that test and construct can be done in one machine.

The testing machine has many advantages, such as small size, compact structure, easy operation, low noise, smooth and steady running, directly bend angle display and easy lubricating, especially reasonable design of limit position and easily damaged parts, so it has a long using time.

Standards:

ISO 6935-2-1991 Steel for the reinforcement of concrete; part 2: ribbed bars

GB1499.2-2007 Steel for the reinforcement of concrete; part 2: ribbed bars

Main Technical Specifications:

Model	GW-40B	GW-50B
Range of bend steel bar's diameter	Φ6-Φ40mm	Φ6-Φ40mm
Angle of steel forward bend	0°-180°at will	0°-180°at will
Angle of steel backward bend	0°-90°at will	0°-90°at will
Rotating speed of working plate	≤ 3.7 r/min	≤ 3.0 r/min
Distance of roller center	165mm	230mm
Diameter of working plate	Φ580mm	Φ860mm
Motor power	1.5KW	3KW
Host size	1050×750×1200mm	1460×1200×1200mm
Weight	750kg	1800kg
