Rockwell Motor-Driven Hardness Tester + Metal Non-metal Materials Hardness Testing Machine

Payment Terms:	T/T,L/C
Place of Origin:	Shandong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: HRD-150

Production Capacity: 200 Sets per Month

Delivery Date: 2 Weeks after Payment

Power: Electronic

Means of Transport: Ocean

Packing: Export Wooden Box

Usage: Hardness Tester

Brand Name: TEST

to determine the Rockwell hardness of ferrous, non-ferrous metals and non-metal materials.

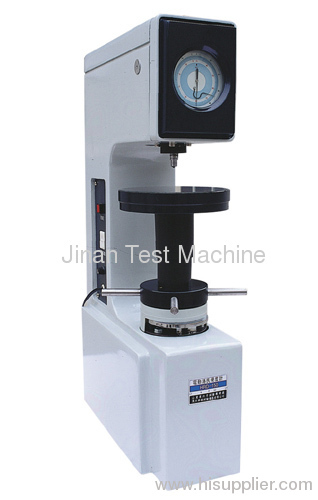

HRD-150 Rockwell Motor-Driven Hardness Tester

Application and Functions:

-Frictionless loading shaft, high precision testing force

-Automatic testing process, no human operating error

-Precision conforms to the Standards of GB/T230.2, ISO 6508-2 and ASTM E18

It's suitable to determine the Rockwell hardness of ferrous, non-ferrous metals and non-metal materials. It can be widely applied in the Rockwell hardness testing for heat treatment materials, such as quenching, hardening and tempering, etc.

Main Technical Specifications:

-Measuring range: 20-88HRA, 20-100HRB, 20-70HRC

-Test force: 588.4, 980.7, 1471N (60, 100, 150kgf)

-Max. height of test piece: 170mm

-Depth of throat: 130mm

-Min. scale value: 0.5HR

-Power supply: 220V AC or 110V AC, 50 or 60Hz

-Dimensions: 500 x 250 x 700mm

-Weight: approx. 75kg
